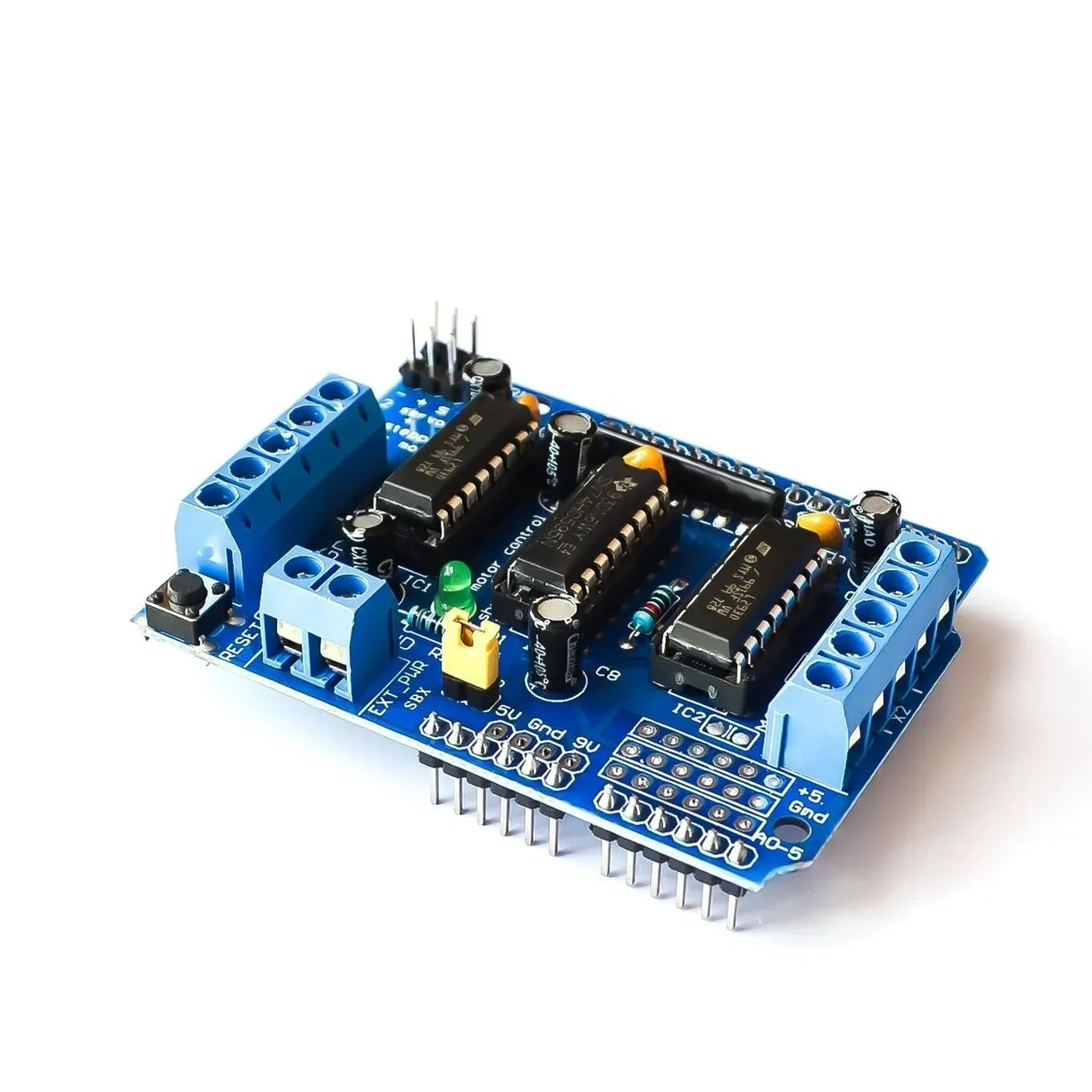

Arduino Motor Drive Shield

This is a stackable shield for Arduino Uno that uses the L293D chip to control up to 4 DC motors or 2 stepper motors, handling voltages up to 36V. It's great for first-year engineering students building simple robots or motor test rigs without complex wiring.

Key Features

• Chip: L293D monolithic H-bridge driver—each channel delivers up to 0.6A continuous (1.2A peak) with thermal protection.
• Motor support: 4 bidirectional DC motors (8-bit PWM speed control) or 2 steppers (unipolar/bipolar modes).
• Voltage range: Motors from 4.5V to 36V DC; Arduino logic at 5V.
• Connections: 2 dedicated 5V servo ports with jitter-free timers; separate power terminals for logic (5V) and motors.
• Extras: Pull-down resistors prevent startup glitches; reset button; stackable headers for sensors/shields.
• Typical projects: Robot cars, conveyor prototypes, or lab motor experiments.

Need an Arduino Uno? Get it here!

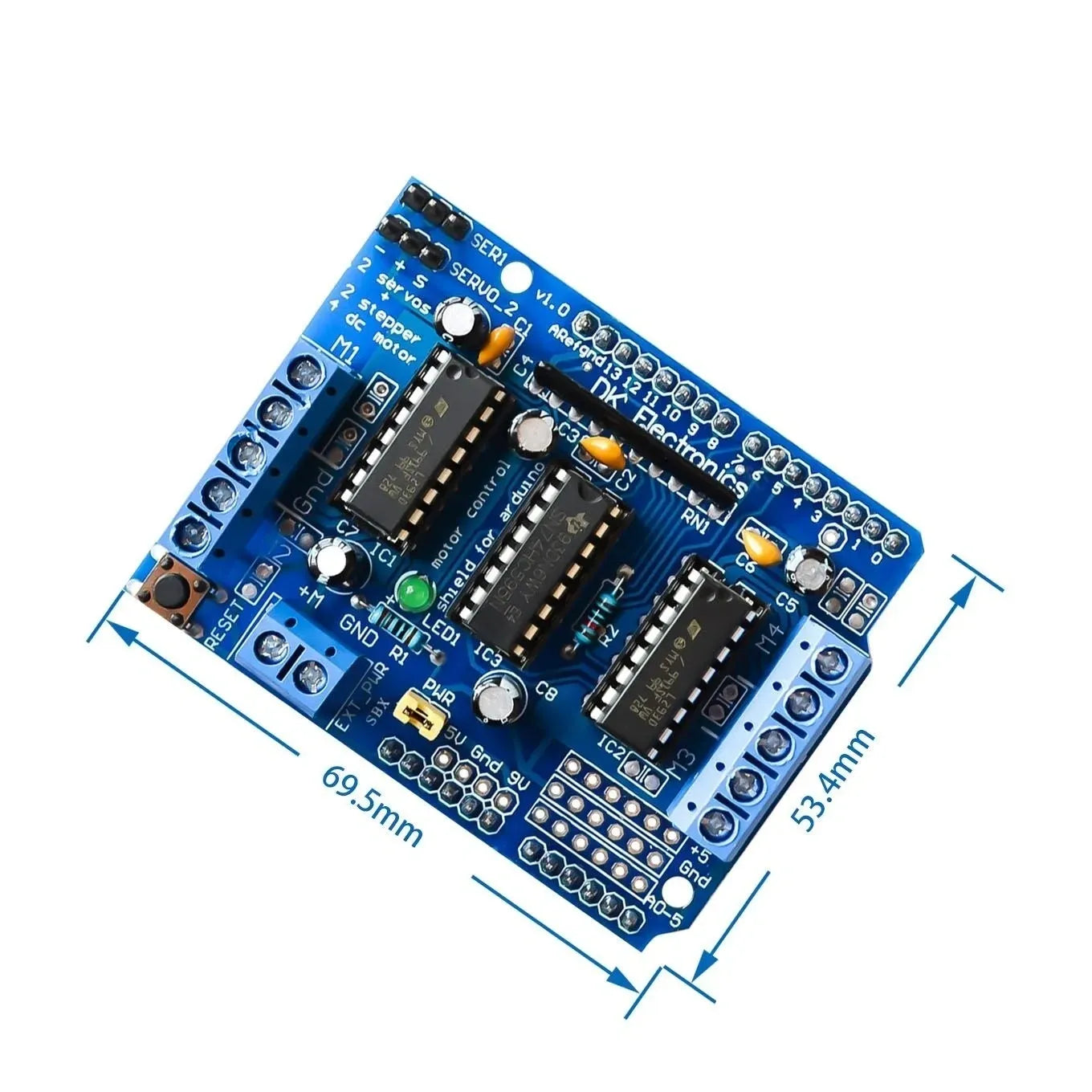

Note: Product size and dimensions may vary slightly.
