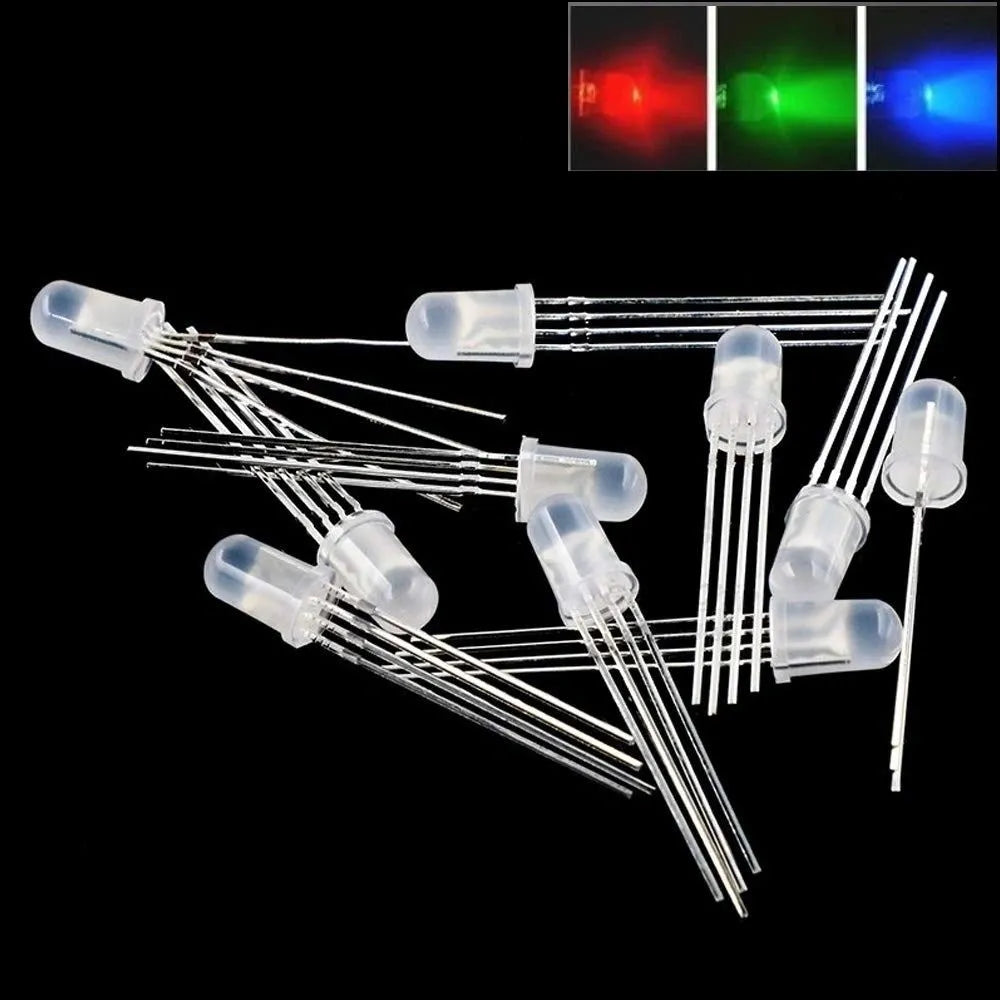

Diffused RGB 5mm LED

These common-cathode diffused 5mm tri-color LEDs blend red, green, and blue chips for smooth full-spectrum color mixing within a wide 60° viewing angle—no separate spots. Perfect for first-year engineering students building mood lights, indicators, or Charlieplexed displays on breadboards.

Independent R/G/B anodes + shared cathode; typical 20mA/ch @ 2V fwd; resistor needed per color (e.g., 150Ω @5V). Epoxy dome diffuses uniformly.

Pins (Cathode Down)

• Center: Common Cathode (longest).
• Left: Blue, Right: Red/Green (flattened).

Note: Product size and dimensions may vary.

Disclaimer: The images shown are for illustration purposes only and may not be an exact match.
