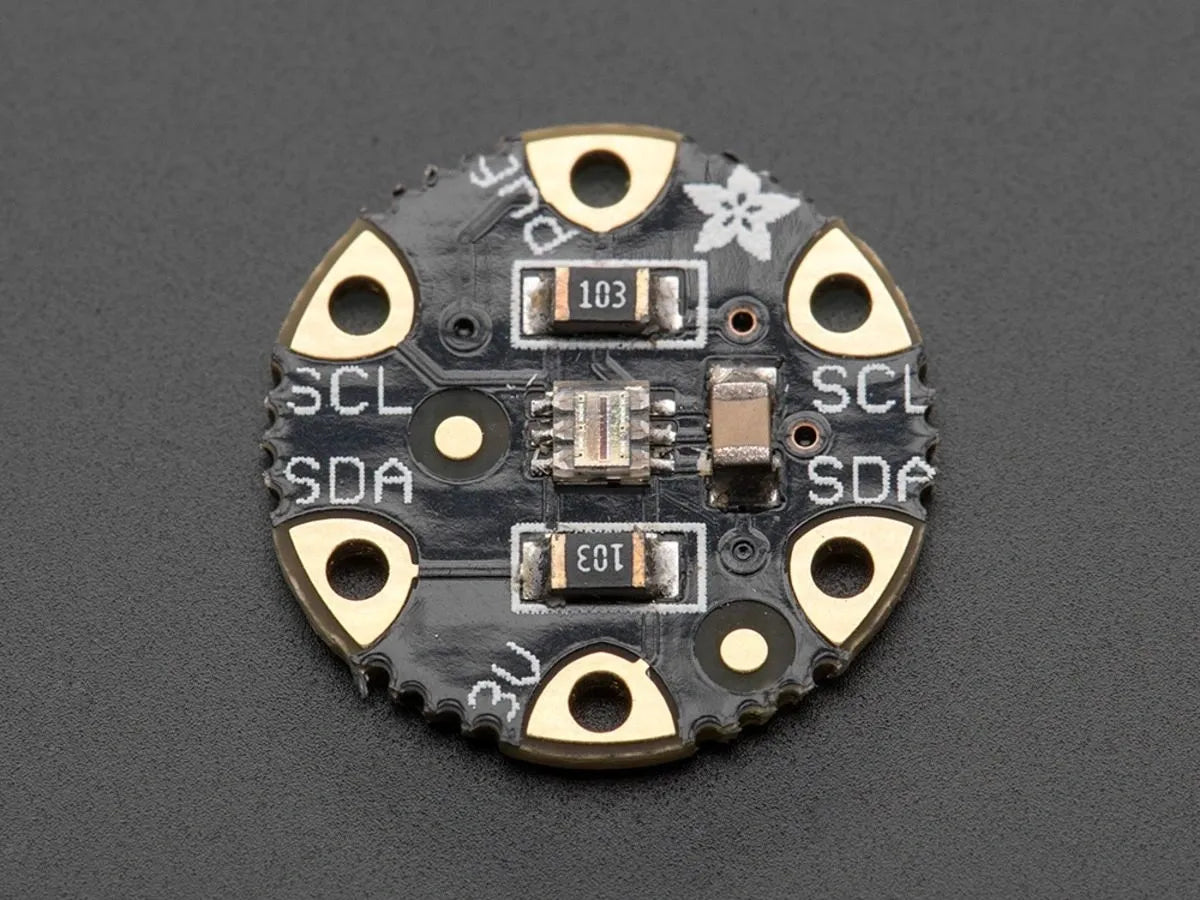

Flora Lux Sensor - TSL2561 Light Sensor - v1.0

High-precision sewable light sensor for Flora wearables using TSL2561 chip—measures 0.1–40,000+ lux with IR/full-spectrum diodes for accurate human-eye visible light calculations. Ideal for engineering students building light-reactive e-textiles.

Key Specs

• Range: 0.1–40,000+ lux (gain 1x/16x, integration 13/101/402ms).
• Interface: I2C (0x39 default).
• Power: 2.7–3.6V, 0.5mA active, <15µA sleep.
• Size: 14mm dia. x 1.8mm.

Wiring to Flora (Conductive Thread)

• 3V → 3V
• GND → GND
• SDA → SDA
• SCL → SCL
  Aligns perfectly with Flora edge pads.

Note: Product size and dimensions may vary.

Disclaimer: The images shown are for illustration purposes only and may not be an exact match.
