IC OPAMP GP 2 CIRCUIT 8DIP

This is a dual‑channel general‑purpose operational amplifier (op‑amp) in an 8‑pin through‑hole DIP (PDIP‑8) package. It contains two independent op‑amps on one chip, so it’s commonly used for buffering, gain stages, filters, or comparators where you need two small‑signal amplifiers in a single footprint.

Typical characteristics

• Type: General‑purpose dual op‑amp (examples include LM358‑style or CA3240‑style family).
• Supply voltage: Often around 3–30 V (single or dual supply), depending on the exact part.
• Package: 8‑pin DIP, through‑hole, easy to plug into breadboards or PCBs.

Typical uses

• Amplifying sensor signals, audio stages, or small‑signal DC blocks.
• Building filters, comparators, or simple power‑supply monitoring circuits.

Note: Exact part number (e.g., LM358, CA3240, MC34072AP, etc.) and detailed specs depend on the manufacturer; check the label or datasheet for precise values.

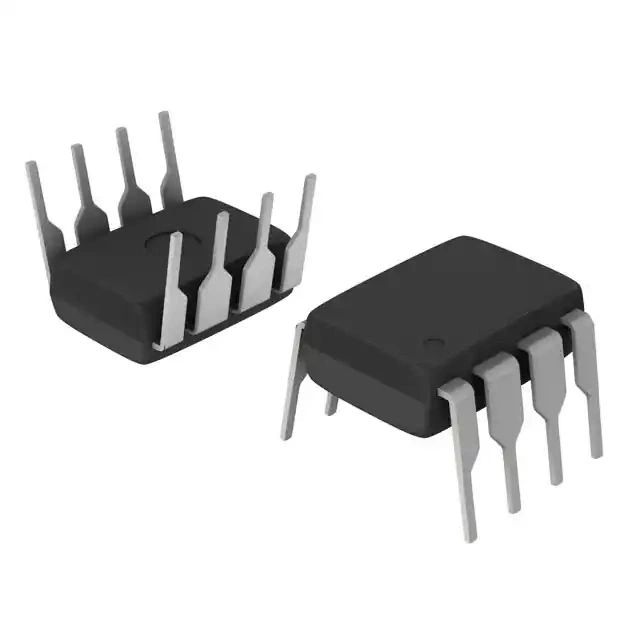

Disclaimer: The images shown are for illustration purposes only and may not be an exact match.
