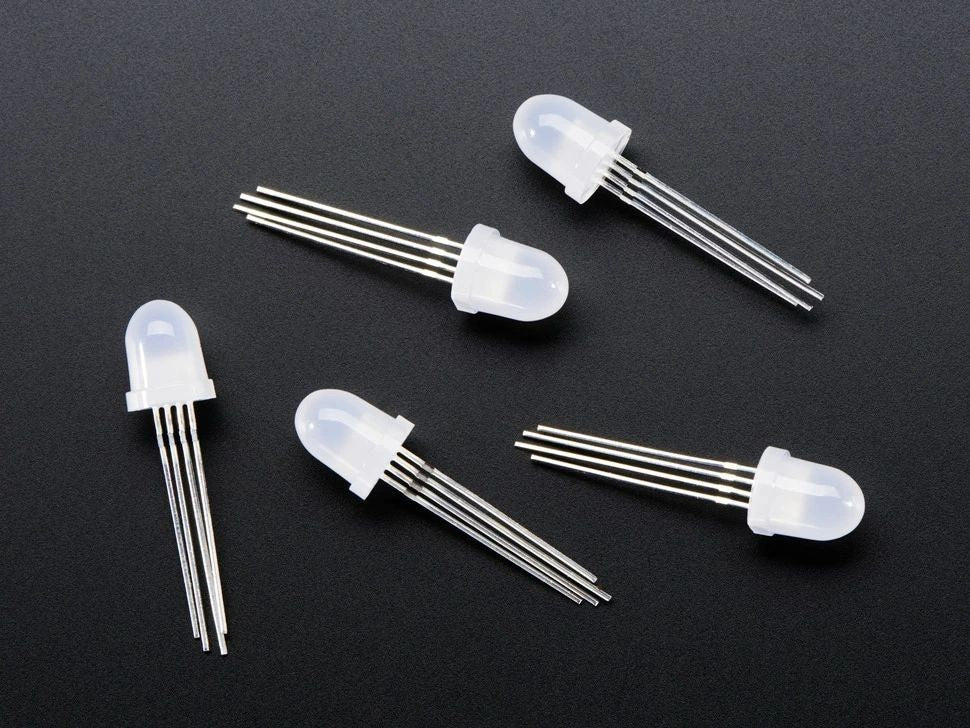

NeoPixel Diffused 8mm Through-Hole LED

Breadboard-ready NeoPixel delivers individually addressable 24-bit RGB color in a classic 8mm diffused package—4 long pins (VCC/DIN/DOUT/GND) for easy chaining and 800kHz single-wire control. Great for first-year engineering students prototyping displays or status lights with Arduino NeoPixel library (note RGB order, not GRB).

5V operation (~60mA full white); WS2812B/SK6812 chip; 120° beam. Add 300–500Ω resistor on data line; chainable DOUT to DIN.

Dimensions

• Height: 11mm (0.4").
• Base diameter: 8mm (0.35").
• Pin length: 27mm (1").

Note: Product size and dimensions may vary.

Disclaimer: The images shown are for illustration purposes only and may not be an exact match.
