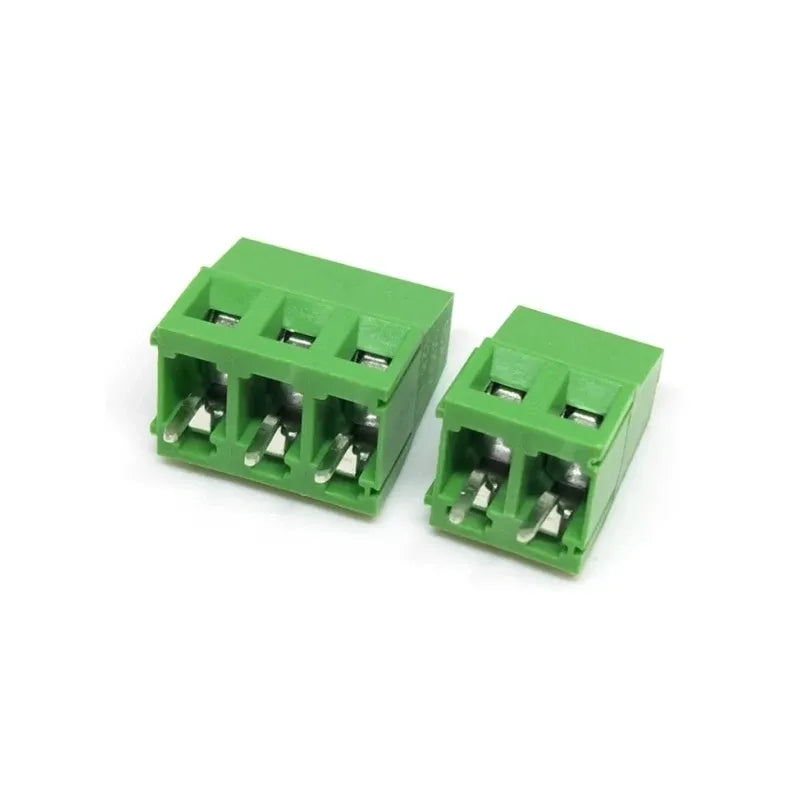

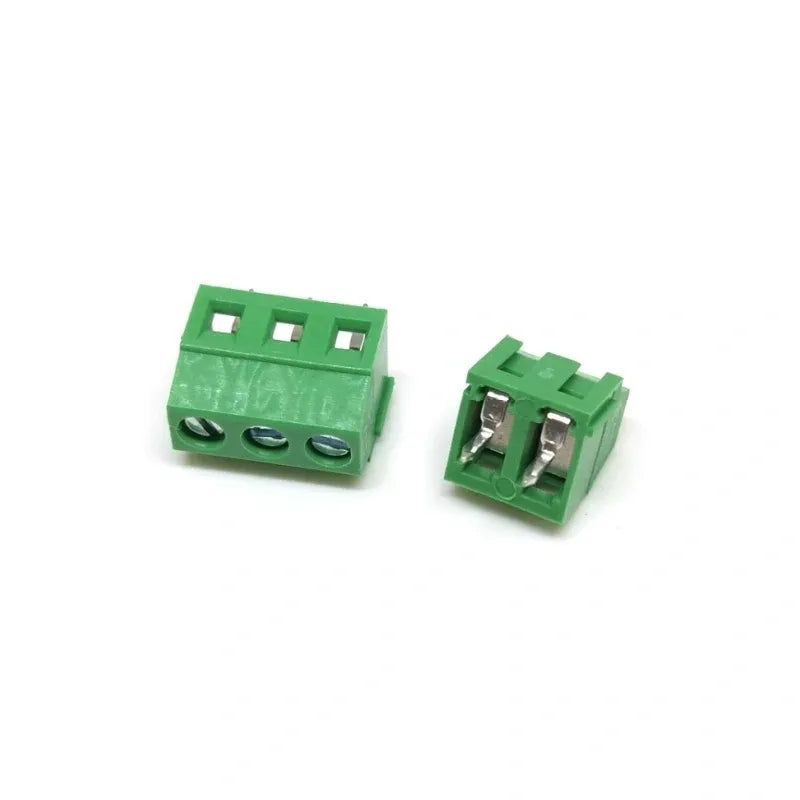

Screw Terminal Block – 300 V / 10 A

This is a small PCB‑mount screw terminal block used to connect and secure wires directly to a circuit board. It’s rated for up to 300 V and 10 A, making it suitable for low‑ to medium‑voltage power and signal wiring in power supplies, motor drivers, or general electronics projects.

Basic features

• Type: Screw‑type PCB terminal block (often 2‑pole or multi‑pole, green housing).
• Rating: Typically 300 V maximum voltage and 10 A continuous current per terminal.
• Mounting: Through‑hole pins soldered to a PCB, with side‑screws or top‑screws to clamp wires (commonly 16–24 AWG).

Typical uses

• Bridging wires from power supplies, motors, or sensors to a prototype board.
• Making removable, tool‑adjustable connections without soldering each time.

Note: Exact pitch (e.g., 3.5 mm, 5.0 mm, or 5.08 mm) and pin count vary by model; check the specific product page.
Disclaimer: The images shown are for illustration purposes only and may not be an exact match.
