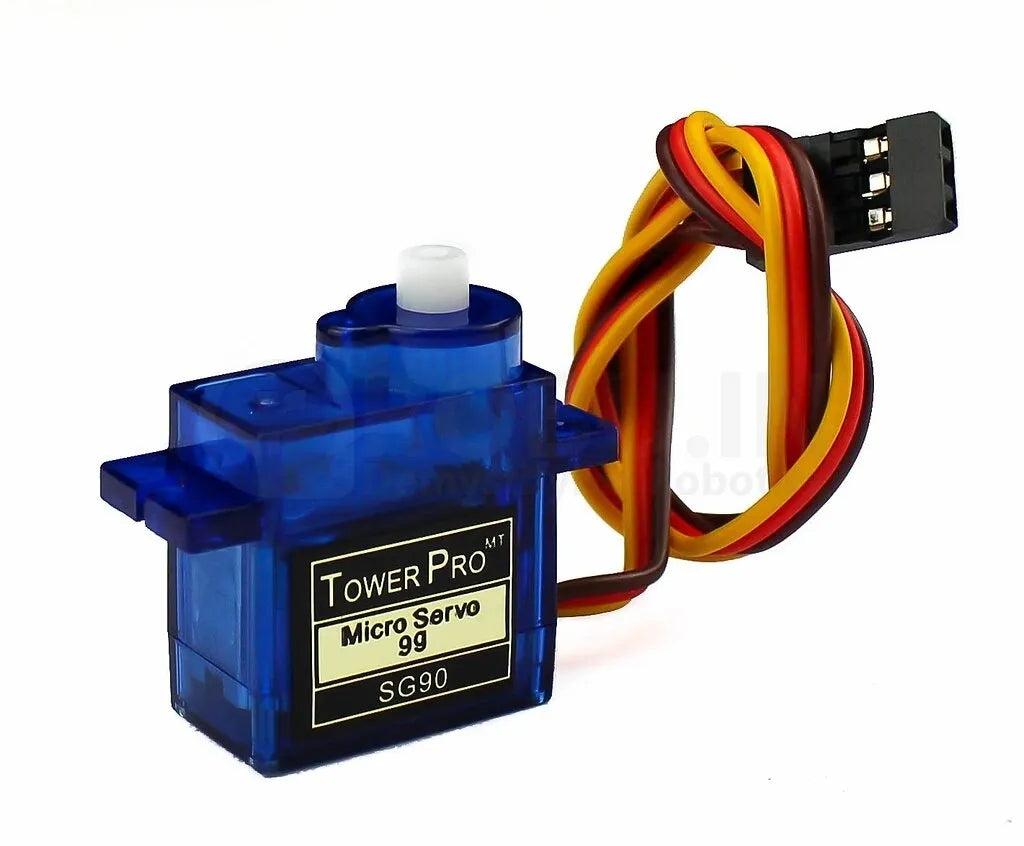

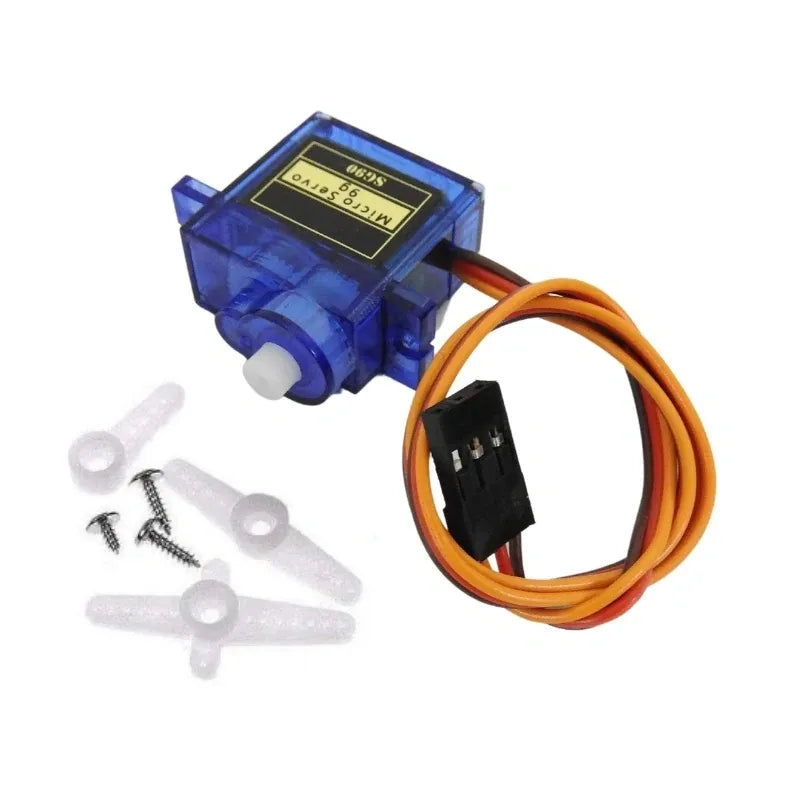

SG90 Micro Servo Motor
SG90 Micro Servo Motor
Regular price
$5.50 CAD
Regular price
Sale price
$5.50 CAD
Unit price
/
per
Couldn't load pickup availability
The SG90 9g micro servo delivers precise 0–180° position control for RC helicopters, robots, arms, boats, or Arduino/Raspberry Pi DIY projects. Ideal for first-year engineering students building automated doors, walkers, or mini vehicles—lightweight at ~9g with lightning-fast response.
3-wire setup: red (5V power), brown (ground), orange/yellow (PWM signal on digital pin like 9). Stall torque 1kg·cm at 4.8V; runs 3–6V; -30°C to +60°C range; 7µs deadband. Compatible with most RC systems and microcontrollers.
Specs Table
| Feature | Detail |
|---|---|
| Torque (4.8V) | 1 kg·cm (17.5 oz/in) |
| Voltage | 3–6V |
| Temp Range | -30 to +60°C |
| Deadband | 7 µsec |
| Weight | ~9g |
Note: Product size and dimensions may vary.
Disclaimer: The images shown are for illustration purposes only and may not be an exact match.
